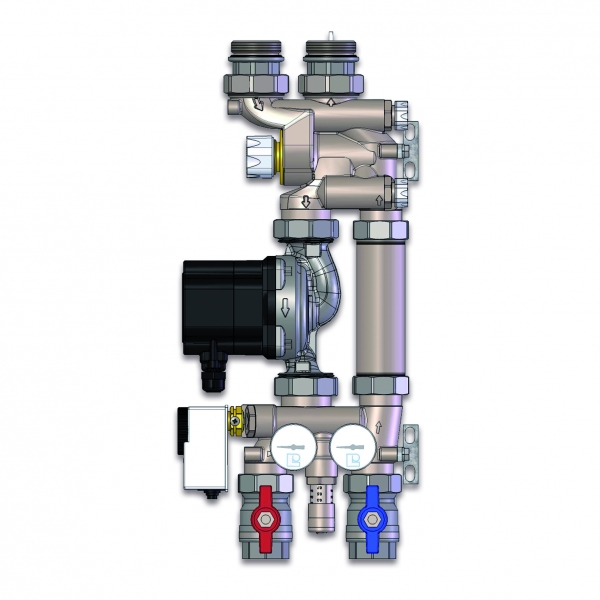

GM 1270
Sliding-point group with pump.
Maximum recommended flow rate 2.750 l/h.
Each group is equipped with:
• 3-way piston mixing valve;
• possibility to install a 3-point or 0-10 V motor on a screw with standard connection M30x1,5 mm;
• bypass valves for manual adjustment for the circuits before and after the mixing valve;
• thermometers to display the delivery and return temperature;
• bypass differential valve;
• check valve;
• shut-off for circuits.
(the CB version is insulated)
Documentation
Drawing
Technical
Instruction manual
Certificates
| COD | Size | Interaxis |  |  |  |
|---|---|---|---|---|---|
| 68763450 | G 1” | 130 mm | 5.908 | – | 1 |
| 68763450CB | G 1” | 130 mm | 6.188 | – | 1 |
| 68764250 | G 1”1/4 | 180 mm | 8.299 | – | 1 |
| 68764250CB | G 1”1/4 | 180 mm | 8.579 | – | 1 |
